Python神经网络编程
深度学习
这两天看了这本书,非常好.一下就可以把人讲懂.我试着写了他的例子
程序
import scipy.special
import numpy
import matplotlib.pyplot as plt
import pickle
class neuralNetwork:
def __init__(self, inputnodes: int, hiddennodes: int, outputnodes: int, learningrate: int):
# set the node number
self.inodes = inputnodes
self.hnodes = hiddennodes
self.onodes = outputnodes
# set the learn rate
self.lr = learningrate
# generate the W_input_hidden and W_hidden_output matrix
# hidden = w_ih * innodes => w_ih is [hidden x input]
self.w_ih = numpy.random.normal(scale=pow(self.hnodes, -0.5),
size=(self.hnodes, self.inodes))
# out = w_ho * outnodes => w_ho is [out x hidden]
self.w_ho = numpy.random.normal(scale=pow(self.onodes, -0.5), # 节点数的 -1/2 次
size=(self.onodes, self.hnodes))
# set the active function
self.active_fuc = lambda x: scipy.special.expit(x)
self.re_active_fuc = lambda x: scipy.special.logit(x)
# we need set the target to train
def train(self, input_list, target_list):
# convert list to 2d array
inputs = numpy.array(input_list, ndmin=2).T
targets = numpy.array(target_list, ndmin=2).T
# calculate signals into hidden layer
hidden_inputs = numpy.dot(self.w_ih, inputs)
hidden_outputs = self.active_fuc(hidden_inputs)
# calculate signals of the output layer
final_inputs = numpy.dot(self.w_ho, hidden_outputs)
final_outputs = self.active_fuc(final_inputs)
# hidden_error = output -target
output_errors = targets-final_outputs
hidden_errors = numpy.dot(self.w_ho.T, output_errors)
# input_error = hidden_error - hidden_output
# update the W_ho
self.w_ho += self.lr * \
numpy.dot((output_errors*final_outputs*(1.0-final_outputs)),
numpy.transpose(hidden_outputs))
self.w_ih += self.lr * \
numpy.dot((hidden_errors*hidden_outputs*(1.0-hidden_outputs)),
numpy.transpose(inputs))
pass
def query(self, input_list: numpy.ndarray)->numpy.ndarray:
# convt input_list to 2d array
inputs = numpy.array(input_list, ndmin=2).T
# X_hidden = W_ih · inputs
hidden_input = numpy.dot(self.w_ih, inputs)
hidden_output = self.active_fuc(hidden_input)
final_input = numpy.dot(self.w_ho, hidden_output)
final_output = self.active_fuc(final_input)
return final_output
def backquery(self, targets_list: list)->numpy.ndarray:
# transpose the targets list to a vertical array
final_outputs = numpy.array(targets_list, ndmin=2).T
# calculate the signal into the final output layer
final_inputs = self.re_active_fuc(final_outputs)
# 权重矩阵可能无法求逆，所以直接乘转置
hidden_outputs = numpy.dot(self.w_ho.T, final_inputs)
# scale them back to 0.01 to .99
hidden_outputs -= numpy.min(hidden_outputs)
hidden_outputs /= numpy.max(hidden_outputs)
hidden_outputs *= 0.98
hidden_outputs += 0.01
# calculate the signal into the hidden layer
hidden_inputs = self.re_active_fuc(hidden_outputs)
# calculate the signal out of the input layer
inputs = numpy.dot(self.w_ih.T, hidden_inputs)
# scale them back to 0.01 to .99
inputs -= numpy.min(inputs)
inputs /= numpy.max(inputs)
inputs *= 0.98
inputs += 0.01
return inputs
if __name__ == "__main__":
input_nodes = 784
hidden_nodes = 100
output_nodes = 10
learn_rate = 0.3
n = neuralNetwork(input_nodes, hidden_nodes, output_nodes, learn_rate)
# # read the data set
# train_file = open("./mnist_train.csv")
# train_data = train_file.readlines() # type:list
# train_file.close()
# for record in train_data:
# all_value = record.split(',')
# # set inputs data to 0.01 ~ 0.99
# inputs = (numpy.asfarray(all_value[1:])/255.0*0.99)+0.01
# # set target data
# targets = numpy.zeros(output_nodes)+0.01 # set the false is 0.01
# targets[int(all_value[0])] = 0.99 # set the right is 0.99
# n.train(inputs, targets)
# save the model !
# savefile = open('nnmodel', 'wb')
# pickle.dump(n.w_ih, savefile, 1)
# pickle.dump(n.w_ho, savefile, 1)
# savefile.close()
# read the model !
savefile = open('/home/zqh/Program/Python_study/NN/nnmodel', 'rb')
n.w_ih = pickle.load(savefile)
n.w_ho = pickle.load(savefile)
savefile.close()
# read the test data
test_file = open("./mnist_test.csv")
test_data = test_file.readlines() # type:list
test_file.close()
scorecard = []
for record in test_data:
test_value = record.strip().split(',')
inputs = (numpy.asfarray(test_value[1:]) / 255.0 * 0.99) + 0.01
outputs = n.query(inputs)
label = numpy.argmax(outputs)
# print("原始：{} 预测：{}".format(test_value[0], label))
if int(test_value[0]) == label:
scorecard.append(1)
else:
scorecard.append(0)
print("准确率 = {:.2f}%".format(
sum(scorecard) / len(scorecard)*100.0))
print('反向查询：')
image_array = n.backquery(
[0.01, 0.01, 0.99, 0.01, 0.01, 0.01, 0.01, 0.01, 0.01, 0.01])
plt.imshow(image_array.reshape(28, 28), cmap='Greys')
plt.show()运行结果
➜ NN /usr/bin/python3 /home/zqh/Program/Python_study/NN/nn.py
准确率 = 94.68%

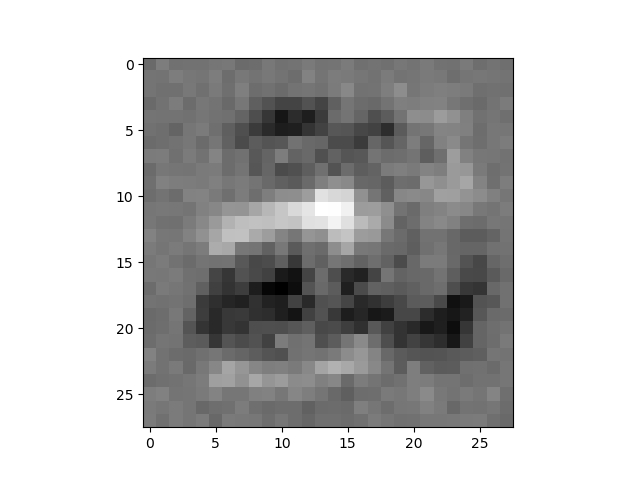

反向查询：
